Calibration Facility

GOA-CF in the ESFRI Rodamap

The GOA Calibration Facility is now part of the ACTRIS Research Infrastructure, included in the 2016 update of the ESFRI Roadmap.

The GOA Calibration Facility (CF) is an infrastructure devoted to radiometric calibrations. Our main task is the calibration of Cimel sun photometers within AERONET.

The GOA-CF was initially created for RIMA network (Red Ibérica de Medida fotométrica de Aerosoles, see History), federated to AERONET. The calibration center within AERONET is managed in close cooperation with GSFC at NASA, the University of Lille and the Izaña Atmospheric Research Center.

It is composed by an Optical Laboratory and a roof Platform in the terrace of the Science Faculty Building. The roof platform in used for solar calibrations, typically made by comparison of field instrument signals with a calibrated master instrument. In it, 2 calibrated master instruments are used to transfer absolute calibration to the field instruments of the network. A unique facility for calibration of master instruments is provided by AEMET at Izaña.

The laboratory for radiometric calibrations includes several systems for radiance and irradiance calibrations, maintenance and repair room, spectrometers and a thermal chamber. The laboratory is equipped with 3 integrating spheres, denoted “Asterix” (2 lamps, 8 inch diameter), “Obelix” (4 lamps, 20 inch diameter) and “Panoramix” (1 lamp, 12 inch diameter). The spheres are used for radiance absolute calibration, which is transferred from a NASA travelling master every 4 months. For irradiance calibration we have FEL lamps with NIST traceable calibration, mounted on a 2m optical bench. The thermal chamber devoted to test temperature response of instrumentation in the range -40ºC to +60ºC.

IMG_6066 - copia - copia

Cimel instruments operated on the roof platform at the Science Faculty, Valladolid.

IMG_6070 - copia

Radiance calibration of multiple Cimel photometers using the 20-inch integrating sphere “Obelix”.

IMG_6075 - copia

Thermal chamber used for temperature characterization. The instrument in the chamber looks at a stable source outside, the integrating sphere “Panoramix”.

asterix

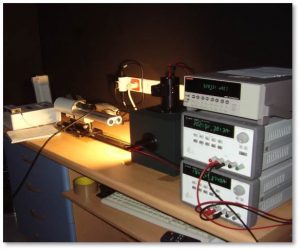

Cimel sun photometer looking at the integrating sphere “Asterix”. The power supplies and precission amperimeter are shown on the right.

The calibration facility has received funding from regional and  national projects since 2006. After 2011 it has received funding from the European Union FP7 under grant agreement No 262254 (ACTRIS project) and from Horizon 2020 research and innovation programme under grant agreement No 654109 (ACTRIS-2).
